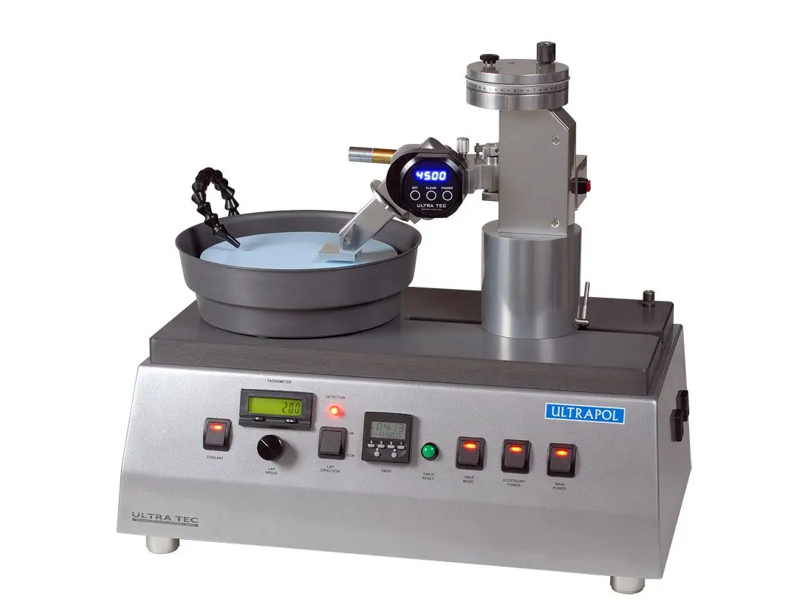

ULTRAPOL End & Edge Polisher
Cross-section polishing with ultimate pressure
control, workholding and angular versatility
ULTRAPOL End & Edge Polisher offers ultimate versatility for sample load control and producing wedge-angles for cross-sectioning and edge polishing applications. A range of workholders extends the application of the system.
The micropositioner head may be calibrated in two-circles to ensure the correct features and or finish thickness can be polished or revealed
for analysis.
ULTRAPOL accepts polishing films, papers, pads and cloths to achieve the finest surfaces on most sample types, materials and
chemistries.
Please see below for more details
Please Contact us for a copy of the ULTRAPOL Advance Datasheet
| Z-Position Adjustment | 1μm |
| Sweep Oscillator | (0 to 20 degrees) |
| Digital Angle Dial | (0.01 degrees Read-out) with Process-End Alarm |
| Polishing Plate with Ultra-Low Run-Out | 8” |
| Weight Kit | 0 to 2000g |
| Quick Release Interface | |
| Coolant Nozzle with Valve | |
| End Stop Fine Adjust | |
| Lock for Slippable Scale | |
| Power Requirements | Configured for 100-220/240V |
Features and Specifications subject to change without notice
Please Contact us for a copy of the ULTRAPOL End & Edge Polisher Datasheet
| Part # | Item | Description |
| 6390.1D | ULTRAPOL End & Edge Polishing System – Digital | Includes polishing unit with timer, tachometer, solenoid coolant system, speed control and process-end indicator. Micropositioner head includes, advanced angular control, low inertial mass loading system with auxiliary weight kit, oscillation control, 1 micron Z-control and ‘Quick Release’ workholder mounting system. Digital Angle Dial with 0.01 degree readout and process-end alarm. Configured for 100-220/240V. |
| 6390.1A | ULTRAPOL End & Edge Polishing System – Analog | Specifications as 6390.1D but supplied with 0.1 degree analog angle readout and without process-end alarm. |
| Microscopy Series | ||
| 4065.1 | SEM Stub type workholder | |
| 2024.1 | Encapsulated mount workholder | |
| 4066.1 | TEM/pre-FIB workholder | |
| Optics & Medical Series | ||
| 6080.1 | Small Block Holder | |
| 3547.1 | Single V-clamp (16-34mm dia.) | |
| 3552.1 | Saddle Clamp | |
| 3545.X | Custom V-Clamp | |
| 4079.2 | Thin Plate Holder (up to 50mm length) | |
| 2728.8 | Multiple V-groove Holder | |
| 2728.8 | Holder mounted in 2726.1 Setting Stand | |
| 2745.1 | Bare Fiber Holder (fibers > 400 μm) | |
| Fiber-Optics Series | ||
| 2707.1 | Bare Fiber Holder – 1 position | |
| 2707.4 | Bare Fiber Holder – 4 position | |
| 2703.1 | SMA (905) Connector Holder | |
| 2704.1 | ST Connector Holder | |
| This is only a small selection of the work-holders we offer. Multiple-position and custom holders are also available. | ||
** Features and Specifications subject to change without notice **

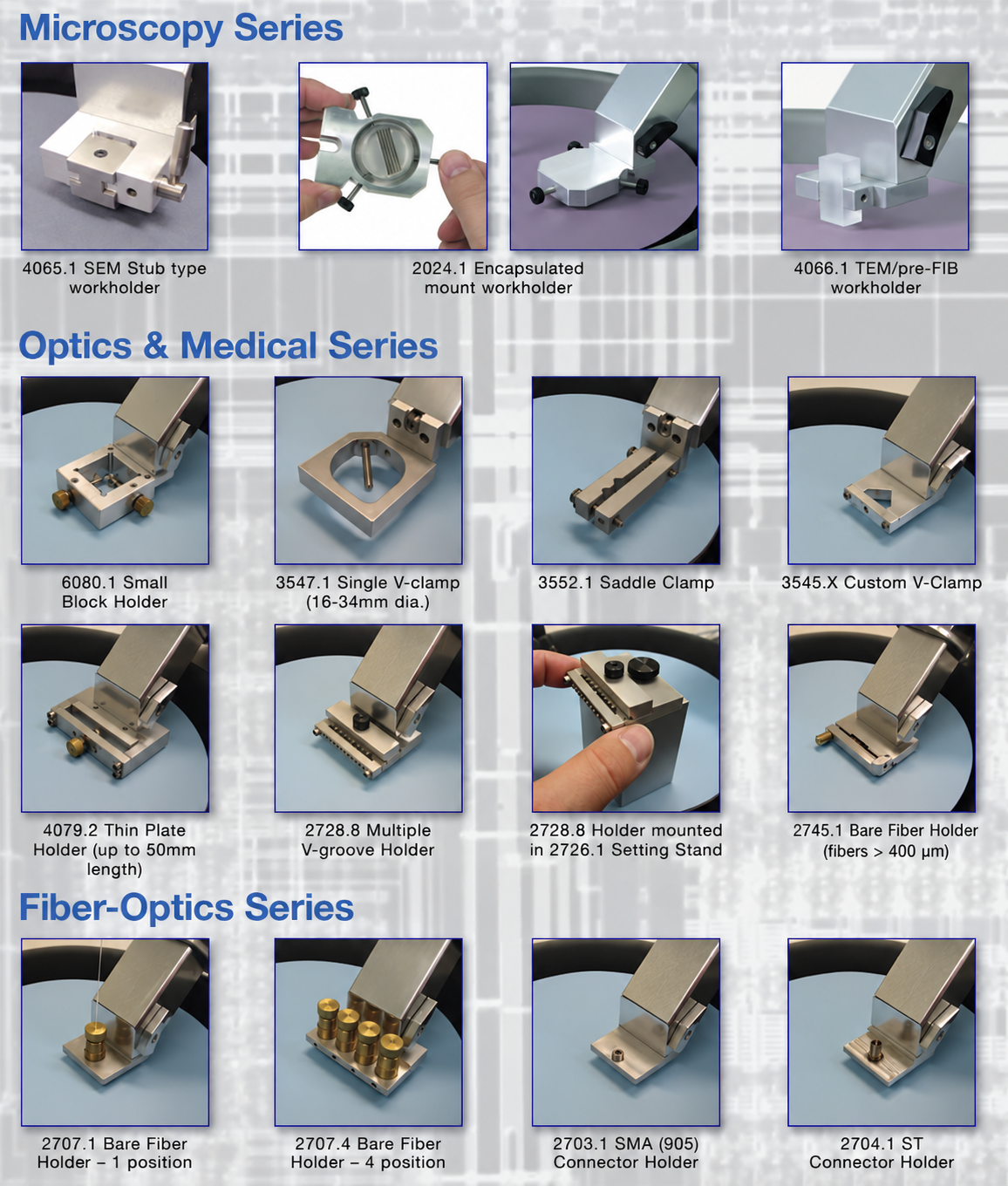

A Selection of Our ‘Quick Release’ Work-holders
