ULTRAPOL Basic

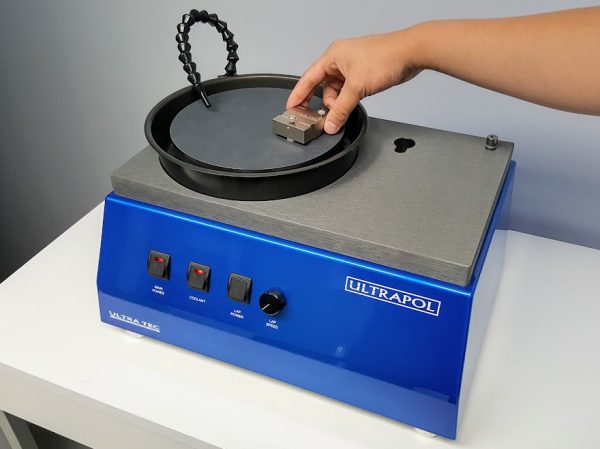

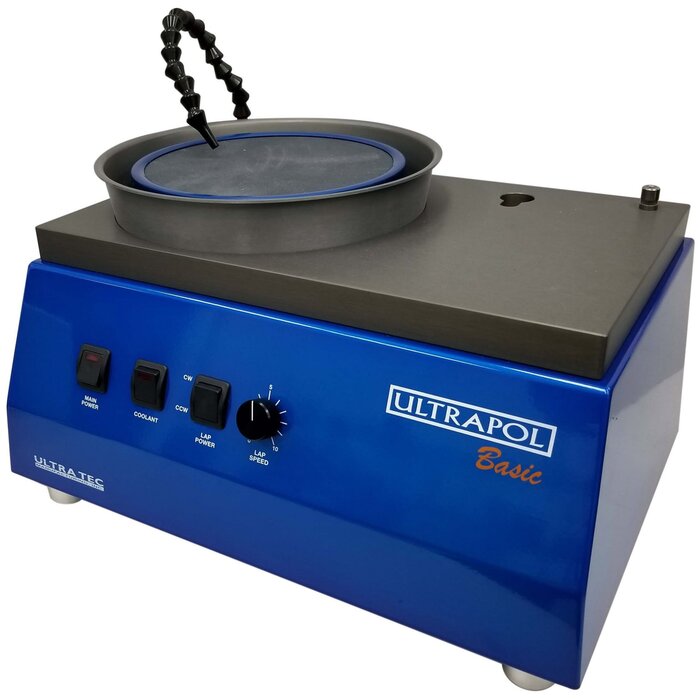

ULTRAPOL Basic Manual Polishing Machine
ULTRAPOL Basic lapping and polishing machine offers the build-quality required for high precision manual polishing of materials for production, research and NAND flash chip-off in digital forensics — at an extremely affordable price.
The system has an 8 inch, replaceable polishing plate, faucet coolant, and dual lap direction.

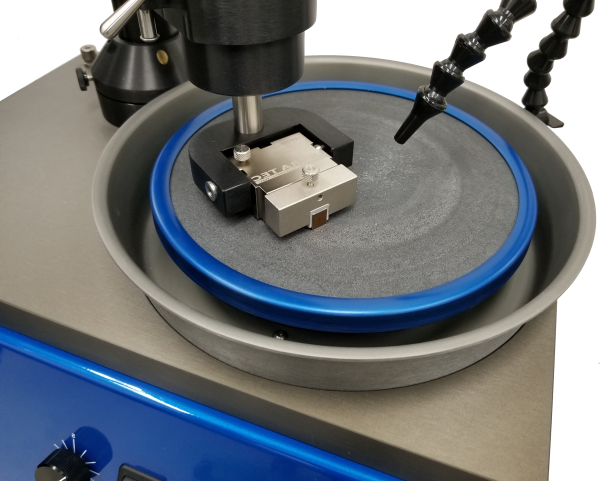

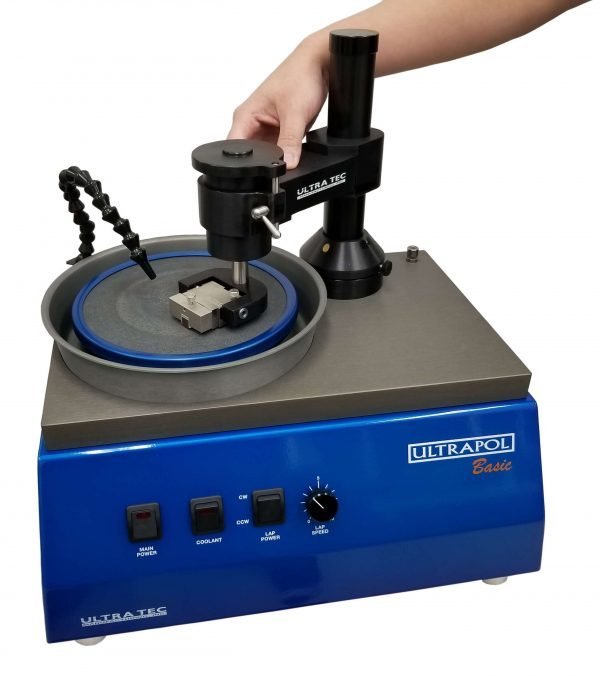

A key upgrade to the unit is the Long Arm Positioner, which holds a range of our manual polishing tools.
- Cost-effective manual polisher
- High Torque mechanism
- In-built coolant system
- Can be used with manual tools
- Upgradeable with Long Arm Positioners
- High Quality Build
Several specialist manual polishing tools are available for the system:
- UPF201 – Planar polishing tool for Chip-Off and bare die thinning and de-processing
- UPF101- Cross-sectioning tool for semiconductor die
Please see below for more details
Please Contact us for a copy of the ULTRAPOL End & Edge Polisher Datasheet
ULTRAPOL Basic lapping and polishing machine offers the build-quality required for high precision manual polishing of materials for production, research and NAND flash chip-off in digital forensics — at an extremely affordable price.
The system has an 8 inch, replaceable polishing plate, faucet coolant, and dual lap direction.
A key upgrade to the unit is the Long Arm Positioner, which holds a range of our manual polishing tools.
Several specialist manual polishing tools are available for the system:
- UPF201 – Planar polishing tool for Chip-Off and bare die thinning and de-processing
- UPF101- Cross-sectioning tool for semiconductor die
| Part # | Item | Description |
| 1209.1 | ULTRAPOL Basic Polisher | 8 inch (200mm) polishing system with speed control and solenoid-controlled coolant system. Configured for 100 – 220/240V operation. 0-500 RPM. Includes |
| UPF101 | Manual Cross Section | Fixture includes 5 aluminium and 5 stainless steel sample mounts |
| UPF201 | Manual Parallel Polish | Fixture includes alignment mirror and 3 parallel polish sample mounts. |
** Features and Specifications subject to change without notice **
