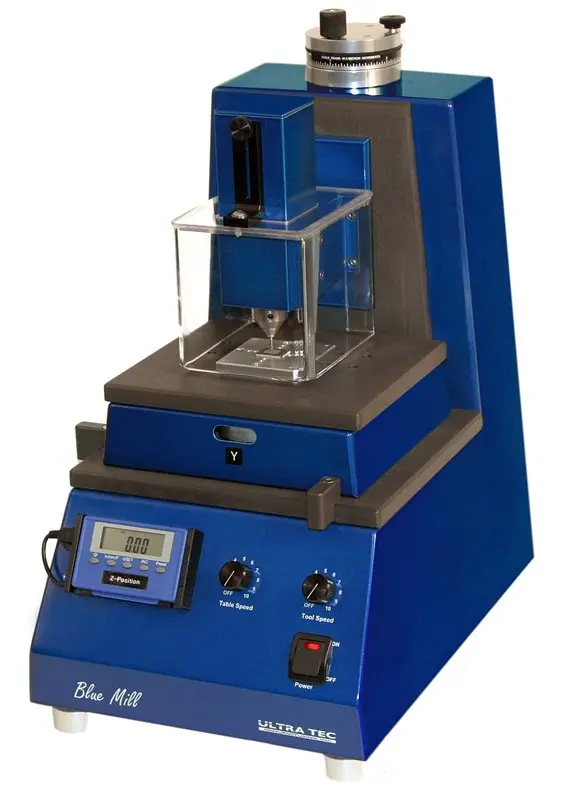

Benchtop Milling Machine
Low-speed milling = fast, accurate, dependable Chip-Offs
Every lab can now produce accurate chip-offs – optimized and ready for data collection. The NAND flash or package is mounted on Blue Mill's specially designed traveling table that oscillates in the X and Y directions. It is quickly and easily set to the required amplitude. A rotating tool, controlled in the Z-Direction, provides reproducible grinding to a specific thickness.
Importantly for digital forensics, Blue Mill provides negligible heat generation during chip-off processes, maintaining important data
Product Highlights
- Complete Solution – NO COMPUTER REQUIRED!
- No programming or 'G-Coding' experience required
- Great milling results for users of all experience levels
- Built to last – heavy-duty solid steel welded cabinet – with powder coat finish
- Cold Chip-off for Digital Forensics of NAND Flash
- Extremely Compact Footprint
- For the budget conscious user who needs industry-proven results
-
-
Please see below for more details
Please Contact us for a copy of the Blue Mill Benchtop Milling Machine Datasheet
NO COMPUTER REQUIRED!
Every lab can now produce accurate chip-offs, reproducible pre-cavitated devices — ready for testing or final decapsulation with chemicals or plasma.
Low Speed Milling = Fast, Accurate, Repeatable Results
Flip-chip and power chip mechanical pre-decapsulation and matter subtraction is now straightforward and accurate. In digital forensics, Blue Mill provides negligible heat generation during chip-off processes, maintaining important data evidence.
BLUE MILL brings cost-effective Chip-off, bench-top decapsulation and gasket milling to the electronics and digital forensics communities.

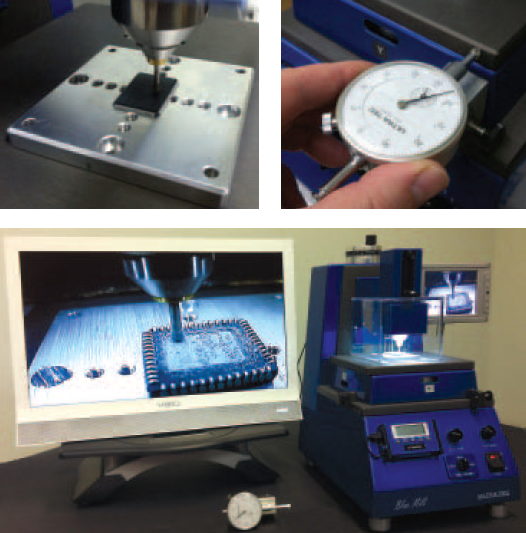

The packaged die or PCB, is mounted on a specially designed travelling table that oscillates in the X and Y directions. It is mechanically set to the required amplitude.
A rotating tool, controlled in the Z-Direction, provides reproducible grinding to be carried out to a specific thickness.
| Part # | Item | Description |
| 8215.1 | BLUE MILL Chip-Off System | Includes: Motorized X-Y table, tool spindle drive with 5 micron Z-resolution, Digital Z Gauge, Retractable Safety guard, mounting plates, set of start-up milling and grinding tools and amplitude setting stand. Configured for 100-240V, 50/60Hz. |
| 8217.1 | LED Stage Illumination | |
| 8218.1 | Independent X-Y Stage Control | |
| 8219.1 | Combination Tilt & Micro-adjust Stage | |
| 8222.1 | Stage Camera | Includes camera and NTSC analog out |
| 8223.1 | In-situ Monitor and mounting arm | min 6.5 inch |
| Independent X-Y Stage Control | ||
| Tool spindle drive | 5 micron Z-resolution | |
| Digital Z Gauge | ||
| Retractable Safety guard. | Supplied with 3 mounting plates for package mouting and to hold standard diameter fluoroelastomer gaskets | |
| Set of start-up milling and grinding tools | Included | |
| Amplitude setting stand. | Included |
** Features and Specifications subject to change without notice **
