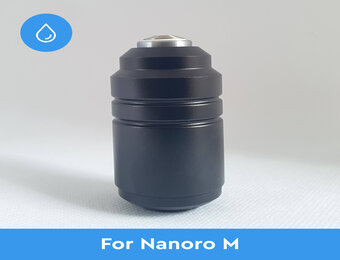

SMAL Immersion for Nanoro M
230-240x Objective SMAL Lens | Immersion For Nanoro M
World leading optical resolution for advanced materials inspection.
Lig NanoWise SMAL AIR lenses can resolve features beyond the diffraction limit of light down to sub 100 nm. Coupled with the scanning stage of the NANORO M, they can provide large area, high resolution images of your sample in full colour.
- See features below 100 nm
- Magnification 230-240x
- Immersion: water / oil / silicone / glycerol
- Working distance 1-3 μm
OPTICS
| Immersion: | Yes |
| Immersion Media: | Water / Oil / Silicone / Glycerol |
| Typical Resolving Limit: | 80-150 nm, sample dependant |
| Working Distance: | 1 – 3 μm |
| Field of View: | 10 – 15 um diameter |
| Depth of Focus | 200-400 nm |
| Magnification | x230 – x240 |
| Connection: | 0.800″ – 36 RMS |
Weight and Dimensions
| Diameter: | 34 mm |
| Length: | 67.5 mm |
| Weight: | 195g |
Features and Specifications subject to change without notice
– See features below 100 nm
– Magnification 230-240x
– Immersion: water / oil / silicone / glycerol
– Working distance 1 – 3 μm
Features and Specifications subject to change without notice
