SMAL AIR (Dry) for Nikon
230 – 240x Objective SMAL Lens | Dry For Nikon LV Series
World leading optical resolution for advanced materials inspection.
Lig NanoWise SMAL AIR lenses can resolve features beyond the diffraction limit of light without the need for immersion medium, down to scales below 100 nm. SMAL-AIR is now available on Nikon LV range of microscopes, bringing super-resolution to standard laboratory microscopes.
- See features below 100 nm
- Magnification 230-240x
- Immersion free (dry)
- Working distance 100-200nm
*Microscope not included*

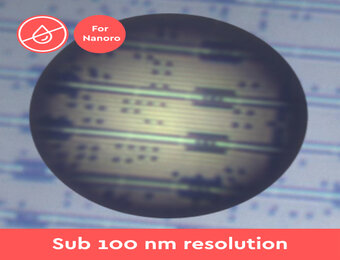

Please see images below showing comparisons between 100x optical imaging and 230-240x SMAL imaging on Nikon LV microscope.
The images below show comparisons between 100x optical imaging and 230-240x SMAL imaging on a Nikon LV microscope.
OPTICS
| Immersion: | No |
| Immersion Media: | None |
| Typical Resolving Limit: | 80-150 nm, sample dependant |
| Working Distance: | 200 nm (approx) |
| Field of View: | 10 – 15 um diameter |
| Depth of Focus | 100 -200 nm |
| Magnification | x230 – x240 |
| Connection: | 0.800″ – 36 RMS |
Weight and Dimensions
| Diameter: | 34 mm |
| Length: | 67.5 mm |
| Weight: | 195g |
Features and Specifications subject to change without notice
– See features below 100 nm
– Magnification 230-240x
– Immersion free (dry)
– Working distance 100-200nmFeatures and Specifications subject to change without notice
