72 Series Probe Holder

Request Information

Probe Holder, malleable with 1-4 inch shaft and set screw probe tip holder.

Requires manipulator (order separately).
Designed to work with all Micromanipulator manipulators and 7-series tips (order separately).
Lead wire terminates in a circular eye connector with an approximately 1/16 inch (1.6mm) hole for connection to measurement instruments.
Malleable body allows for customer to shape as needed.
Total body length = 1″ – 4″ (Select when ordering)

Standard Model Available below – Other lengths available, please contact us for details

Model Length
72-1-R-XX 1 Inch
72-2-R-XX 2 Inch
72-3-R-XX 3 Inch
72-4-R-XX 4 Inch

75-6000-R-XX Probe Holder

Request Information

Lead wire terminates in a circular eye connector with an approximately 1/16 inch (1.6mm) hole for connection to measurement instruments.

Total body length = 1-7/8”.
Universal Single Wire

75-8000-R-XX Probe Holder

Request Information

Lead wire terminates in a circular eye connector with an approximately 1/16 inch (1.6mm) hole for connection to measurement instruments.

Total body length = 3-1/8 ”.
Total body drop (by bent body) = 1-1/4”.
Universal Single Wire

79-6000-R-03 Coaxial Probe Holder

Request Information

30″ long signal wire with male coaxial connector for connection to measurement instruments.

Total body length = 1-7/8”.
Coaxial

79-8000-R-03 Coaxial Probe Holder

Request Information

30″ long signal wire with male coaxial connector for connection to measurement instruments.

Total body length = 3-1/8 ”.
Total body drop (by bent body) = 1-1/4”.
Coaxial

79-6000-T-03 Triaxial Probe Holder

Request Information

30″ long signal wire with male triaxial connector for connection to measurement instruments.

Total body length = 1-7/8”.
Triaxial

79-8000-T-03 Triaxial Probe Holder

Request Information

30″ long signal wire with male triaxial connector for connection to measurement instruments.

Total body length = 3-1/8 ”.
Total body drop (by bent body) = 1-1/4”.
Triaxial

79-6000-HV-03 High Power Probe Holder

Request Information

30″ lead wire terminates in male banana plug for connection to measurement instruments.

Total body length = 1-7/8”.
High Power

High Power Probe Holders

Request Information

Our Supplier can make mostly any high power probe. However, we have a series of probe holders designed to operate with most Keithley and Keysight power sources and analysers.

High Power

Part Number Description (Additional details available on request)
79-8000-THV-KTH Keithley Triaxial Three Lug 5kV
79K-8000-THV-KEY Keysight Kelvin Triaxial Three Lug 5kV
79K-8000-THV-KTH Keithley Triaxial Three Lug 5kV
79K-8000-SHV-K Standard Coaxial Two Lug Kelvin 5kV
79-8000-SHV-HT Standard Coaxial Two Lug 5kV
79-8000-THV-KEY Keysight Triaxial 5kV Connector
79-8000-HV-03 Standard Banana Jack 2.5kV

79-6000-D-03 Kelvin Probe Holder

Request Information

Kelvin probe holders provide the benefits of a probe holder with the two cable output of a Kelvin probe. The wiring configuration joins the centre conductors of the two cables at the probe tip holder. The shields are joined just outside the tubular body. The outer most shields are connected to a ground wire and clip. The triaxial Kelvin probe holders have a two tubular body construction. Kelvin probing with a single point rather than duel points (per probe) eliminates the problem of planarity and contact uniformity. Plus the single probe holder reduces the expense of two probe holders and two manipulators. This probe holder is ideal for applications where platen space is at a premium and where contact space is difficult or limited.

Dual Force and Sense 30″ long signal wires with male coaxial connectors for  connection to Kelvin measurement instruments.

Total body length = 1-7/8”.
Triaxial

79-6000-TD-03 Kelvin Triaxial Probe Holder

Request Information

Kelvin probe holders provide the benefits of a probe holder with the two cable output of a Kelvin probe. The wiring configuration joins the centre conductors of the two cables at the probe tip holder. The shields are joined just outside the tubular body. The outer most shields are connected to a ground wire and clip. The triaxial Kelvin probe holders have a two tubular body construction. Kelvin probing with a single point rather than duel points (per probe) eliminates the problem of planarity and contact uniformity. Plus the single probe holder reduces the expense of two probe holders and two manipulators. This probe holder is ideal for applications where platen space is at a premium and where contact space is difficult or limited.

Dual Force and Sense 30″ long signal wires with male triaxial connectors for  connection to Kelvin measurement instruments.

Total body length = 1-7/8”.
Triaxial

79-8000-D-03 Kelvin Probe Holder

Request Information

Kelvin probe holders provide the benefits of a probe holder with the two cable output of a Kelvin probe. The wiring configuration joins the centre conductors of the two cables at the probe tip holder. The shields are joined just outside the tubular body. The outer most shields are connected to a ground wire and clip. The triaxial Kelvin probe holders have a two tubular body construction. Kelvin probing with a single point rather than duel points (per probe) eliminates the problem of planarity and contact uniformity. Plus the single probe holder reduces the expense of two probe holders and two manipulators. This probe holder is ideal for applications where platen space is at a premium and where contact space is difficult or limited.

Dual Force and Sense 30″ long signal wires with male coaxial connectors for connection to Kelvin measurement instruments.

Total body length = 3-1/8 ”.
Total body drop (by bent body) = 1-1/4”.
Triaxial

79-8000-TD-03 Kelvin Triaxial Probe Holder

Request Information

Kelvin probe holders provide the benefits of a probe holder with the two cable output of a Kelvin probe. The wiring configuration joins the centre conductors of the two cables at the probe tip holder. The shields are joined just outside the tubular body. The outer most shields are connected to a ground wire and clip. The triaxial Kelvin probe holders have a two tubular body construction. Kelvin probing with a single point rather than duel points (per probe) eliminates the problem of planarity and contact uniformity. Plus the single probe holder reduces the expense of two probe holders and two manipulators. This probe holder is ideal for applications where platen space is at a premium and where contact space is difficult or limited.

Dual Force and Sense 30″ long signal wires with male triaxial connectors for  connection to Kelvin measurement instruments.

Total body length = 3-1/8 ”.
Total body drop (by bent body) = 1-1/4”.
Triaxial

44-6000-S-NA Probe Holder with Integrated Tip

Request Information

Integrated female SMA connector for connection to measurement instruments.

Total body length = 1-7/8”.
Coaxial

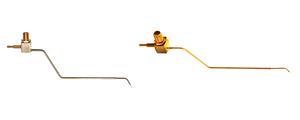

44-8000-S-NA Probe Holder with Integrated Tip

Request Information

Integrated female SMA connector for connection to measurement instruments.

Total body length = 3-1/8 ”.
Total body drop (by bent body) = 1-1/4”.
Coaxial

44-6000-V-NA Probe Holder with Integrated Tip

Request Information

Integrated female UMC connector for connection to measurement instruments.

Total body length = 1-7/8”
Coaxial

44-8000-V-NA Probe Holder with Integrated Tip

Request Information

Integrated female UMC connector for connection to measurement instruments.

Total body length = 3-1/8 ”.
Total body drop (by bent body) = 1-1/4”.
Coaxial

44-6000-D-NA Probe Holder with Integrated Tip

Request Information

Integrated dual Kelvin (Force and Sense) female UMC connectors for connection to Kelvin measurement instruments.

Total body length = 1-7/8”.
Coaxial

44-8000-D-NA Probe Holder with Integrated Tips

Request Information

Integrated dual Kelvin (Force and Sense) female UMC connectors for connection to Kelvin measurement instruments.

Total body length = 3-1/8 ”.
Total body drop (by bent body) = 1-1/4”.
Coaxial

Active Probe Holders

Request Information
Model
PP-12C DC-500Mhz
PP-18C DC-350Mhz
PP-19C DC-350Mhz
PP-28 DC-1Ghz
PP-29 DC-1Ghz
PP-34 DC-3Ghz
PP-35 DC-26Ghz

High Frequency Probe Holders

Request Information
PP40A-DC-40GHz PP50A-DC-50GHz PP67A-DC-67GHz PP50 WR22-33-50GHz PP75 WR15-50-75 GHz PP120 WR10-75-100 GHz PP220 WR5-140-220GHz PP325 WR3 – 220GHz-325GHz
Any Pitch from-to from 50 to 2540 microns from 50 to 1250 microns from 50 to 1250 microns
Freq Range DC to 40 GHz 140 to 220 GHz 220 to 325 GHz
Insertion loss < 0.8 db < 1.0 db < 1.1db 1.0 db max 1.25 db max. 1.75 db max (75 to 110 GHz) 2.0 dB typ. 2.0 dB typ.
Return loss > 18 db > 18 db > 14db 15 db max 15 db max. 15 db max (75 to 110 GHz) 15 dB typ. 15 dB typ.
Measurement repeatability better than -80db -80db -80db -55 db -50 db -50 db
Configuration Available in/with standard or dual differential standard or dual differential standard or dual differential with and without bias T with and without bias T with and without bias T with and without bias T with and without bias T
