LatticeAx 420
The Ultimate High Accuracy Indent and Cleaving System

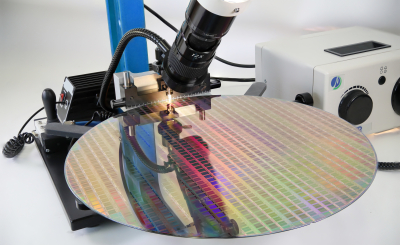

LatticeAx420 is LatticeGear’s highest performance cleaving solution. LatticeAx 420 delivers our highest cleaving accuracy of 10-μm in <5 min making it ideal for the lab that values speed and high accuracy while at the same time needing to accommodate a variety of sample sizes, thicknesses and materials. The patent pending LatticeAx base is integrated with a complete vision package that includes a monocular microscope with 4-μm optical resolution, color CCD camera and real-time image acquisition and display software, and an X-Y stage. This dedicated cleaving workstation is designed so any user can used to survey, align, micro-indent, cleave, and inspect processed samples.
*Computer and Monitor not included
Benefits
- High Accuracy positioning of micro-line indent with high quality cleaving in a single tool
- Fast sample processing increases laboratory productivity
- Reduces bottleneck at costly, high demand sample preparation tools
- Low entry cost and no service cost
- Cleaves a wide range of materials and sample sizes
- Simple to use, ergonomic design and small footprint
Features
- All the features of the LatticeAx 120 base tool
- High accuracy positioning of target (±10 µm)
- LatticeGear custom built: small footprint, industrial platform
- Focus mount with coarse and fine focus control
- Monocular, parfocal, zoom lens (.58-7x mag) with color CCD camera*
- Indent position control with 5 µm step size
- Polished tip diamond indenter
- 5 minute process sample setup to cleave
- Clock dial for indent calibration
Please Contact us for a copy of the LatticeAx 420 Datasheet
